DM8 Dynamic Face Recognition Terminal

2 megapixel binocular HD camera, which supports face detection and false face detection

Support visitor recognition with the QR code, and door opening via the intercom

Industry leading deep learning algorithm with the accuracy rate of 99.9%

Consult now


Technical parameters:

(If the product is updated or its specifications and parameters change during the listing period, please contact our business personnel to double check the latest specifications and parameters.)

Name

Function description

Algorithm performance

Face capacity

30000

IC card capacity

30000

Face recognition accuracy

>99.9%

Face recognition time

<0.6 sec

Recognition range

Recognition distance: 0.5-2 m, recognition height: 1.2-2 m

Main parameters

System

Embedded Linux operating system

Camera

2 megapixel binocular wide dynamic HD camera

Display screen

8-inch HD display screen, 800*1280

Basic functions

Software functions

Embedded Linux operating system

Touch function

Support the multi-touch function

Network protocol

HTTP、RTSP、TCP/IP

Voice broadcasting

Supporting the voice broadcasting function

Light-filling function

Support white light and infrared light filling

External interface

Network communication

1-way 100 MB network interface

Power input

1-way DC 12V power interface

Wiggins output

1-Way Wiggins output interface

Lock output

1-way lock output interface, which supports normal on and normal off.

Open button

1-way open button’s input interface

Door magnet

1-way door status inspection input interface

Operating environment

Whole machine's power

MAX 10W

Operating temperature

-30-75℃

Operating humidity

5%-95%(no condensation)

Protection level

IP65

Product appearance

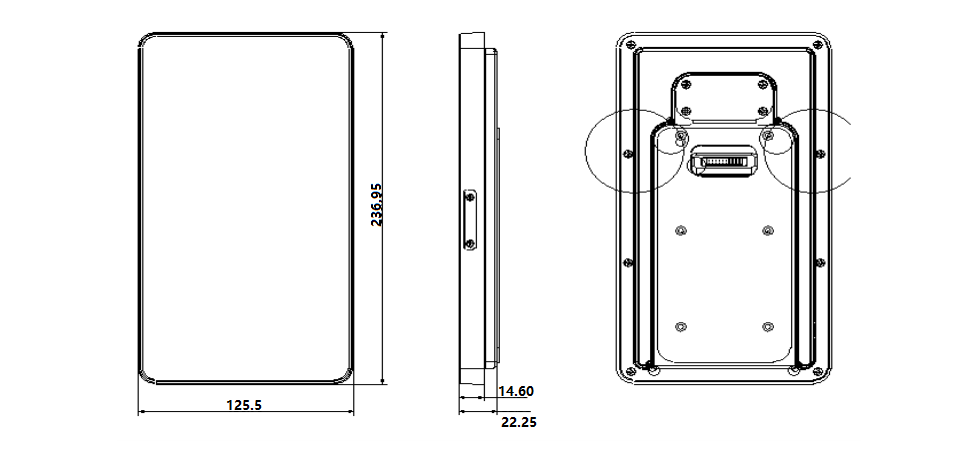

Size

237*126*23mm

Weight

850g
