H71 Dynamic Face Recognition Terminal
Super large 7-inch HD display screen.
2 megapixel binocular HD camera
Face recognition accuracy reaches up to 99.9%.
Consult now
Super large 7-inch HD display screen.
2 megapixel binocular HD camera
Face recognition accuracy reaches up to 99.9%.
Consult now
Technical parameters：
(If the product is updated or its specifications and parameters change during the listing period, please contact our business personnel to double check the latest specifications and parameters.)
Name | Function description | |
Face recognition | Face capacity | 5000 |
Face recognition accuracy | ＞99.9% | |
Face recognition time | ＜0.6秒 | |
Recognition range | Recognition distance: 0.5～2 m, recognition height: 1.2～2 m | |
| Product parameters | System | Embedded Linux operating |
Sensor | Binocular CMOS sensor | |
Resolution | 1024*600 | |
Display screen | Large 7-inch HD display screen. | |
| Product functions | Algorithm | Face detection, live inspection, face tracking, quality evaluation and face comparison |
Software functions | Batch personnel mnagement, data synchronization, access record savom, and Wiggins or switch quantity passthrough | |
Network protocol | HTTP、RTSP、TCP/IP | |
| External interface | Network communication | NetWork Communication: 1 100M adaptive RJ45 interface; |
Power input | 1 DC 12 V voltage interface; | |
Signal output | 1-way switch output interface; | |
Wiggins input | 1 Wiggins input interface, which supports the signal input in the Wiggins 26 and 34 format; | |
Wiggins output | 1 Wiggins output interface, which supports the signal output in the Wiggins 26 and 34 format; | |
USB interface | 1-way USB HOST interface | |
Operating environment | Whole machine's power | MAX 7W |
Operating temperature | -30-70℃ | |
Operating humidity | 5%-95% (no condensation) | |

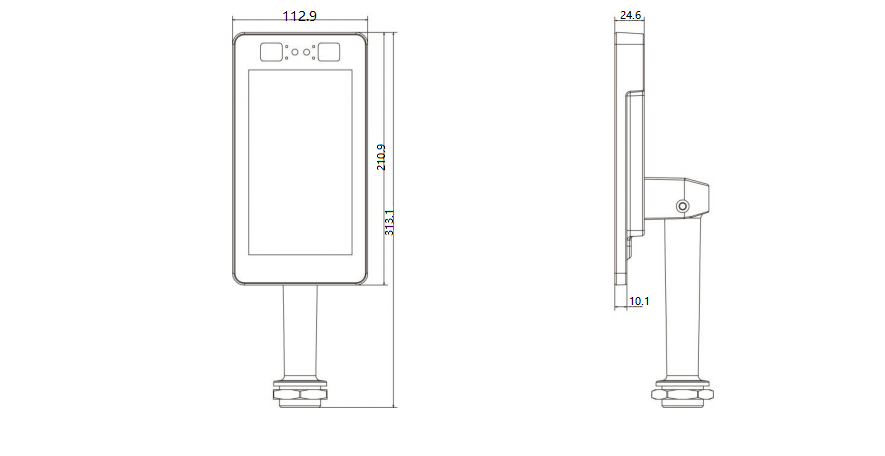

| Product appearance | Size | 313×113×24.6mm |
Openning size | 35-38 mm, recommended: 35mm | |
Weight | 1.2kg | |
