2 megapixel binocular HD camera, which supports face detection and false face detection
Support visitor recognition with the QR code, and door opening via the intercom
Industry leading deep learning algorithm with the accuracy rate of 99.9%
Consult now
Technical parameters：
（If the product is updated or its specifications and parameters change during the listing period, please contact our business personnel to double check the latest specifications and parameters.)
Name | Function description | |
Algorithm performance | Face capacity | 30000 |
IC card capacity | 30000 | |
Face recognition accuracy | ＞99.9% | |
Face recognition time | ＜0.6 sec | |
Recognition range | Recognition distance: 0.5-2 m, recognition height: 1.2-2 m | |
| Main parameters | System | Embedded Linux operating system |
Camera | 2 megapixel binocular wide dynamic HD camera | |
Display screen | 8-inch HD display screen, 800*1280 | |
| Basic functions | Software functions | Embedded Linux operating system |
Touch function | Support the multi-touch function | |
Network protocol | HTTP、RTSP、TCP/IP | |
Voice broadcasting | Supporting the voice broadcasting function | |
Light-filling function | Support white light and infrared light filling | |
| External interface | Network communication | 1-way 100 MB network interface |
Power input | 1-way DC 12V power interface | |
Wiggins output | 1-Way Wiggins output interface | |
Lock output | 1-way lock output interface, which supports normal on and normal off. | |
Open button | 1-way open button’s input interface | |
Door magnet | 1-way door status inspection input interface | |
Operating environment | Whole machine's power | MAX 10W |
Operating temperature | -30-75℃ | |
Operating humidity | 5%-95%(no condensation) | |
Protection level | IP65 | |

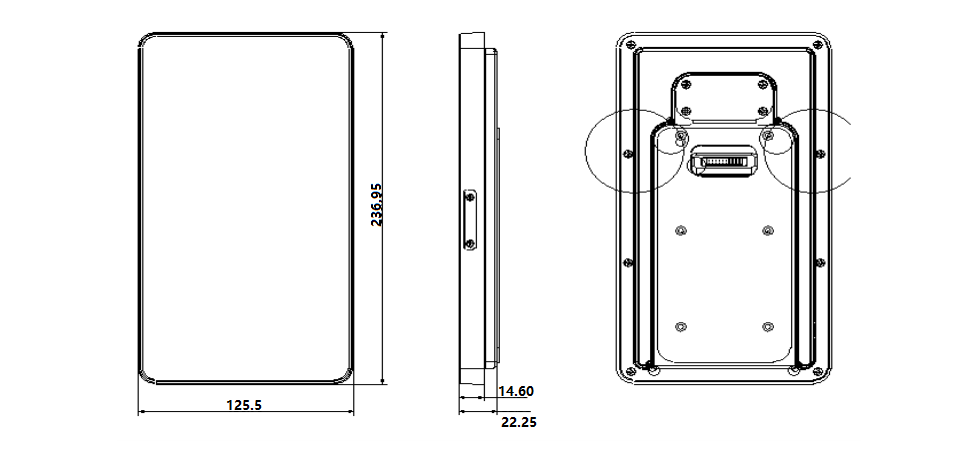

| Product appearance | Size | 237*126*23mm |
Weight | 850g | |
